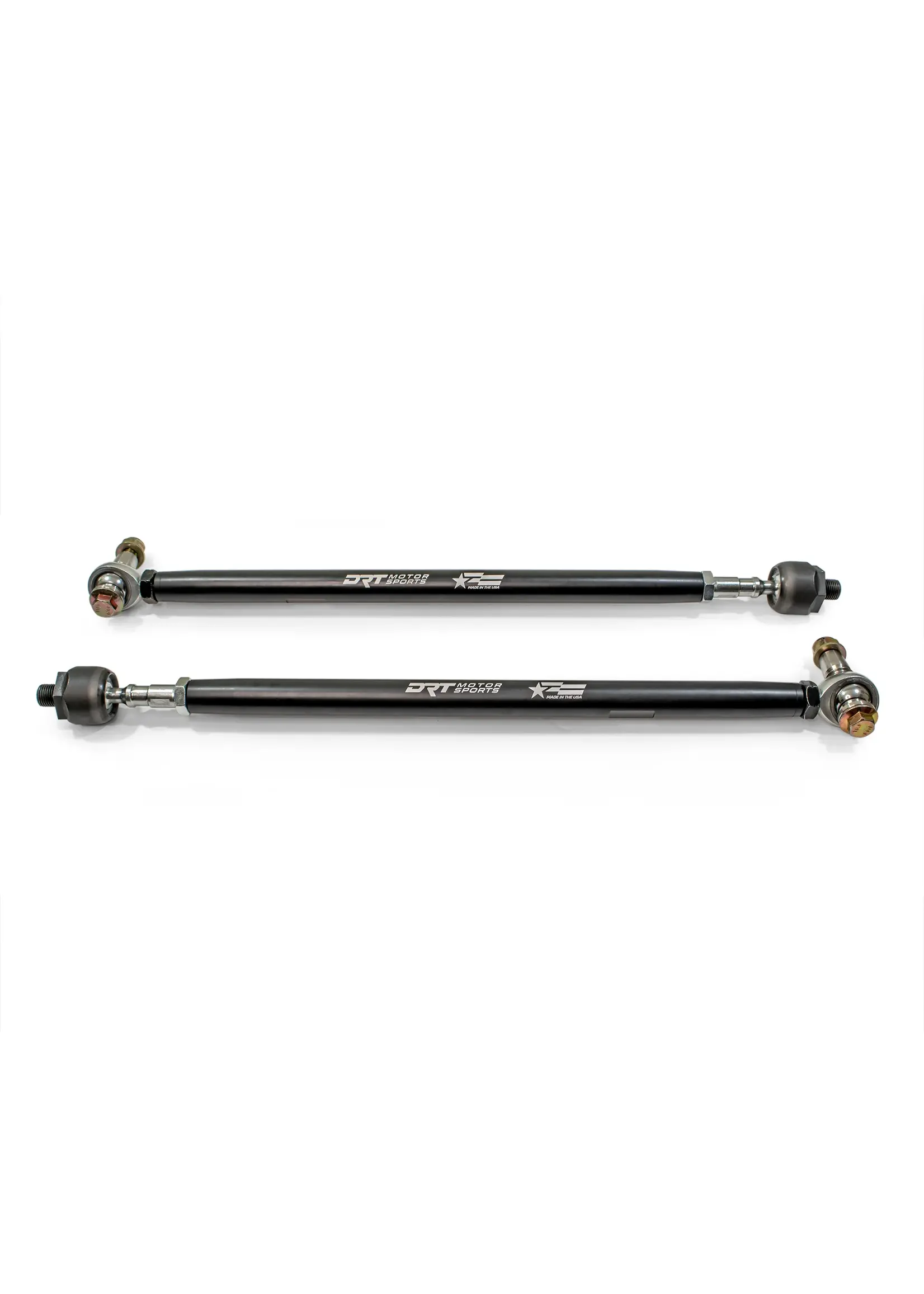

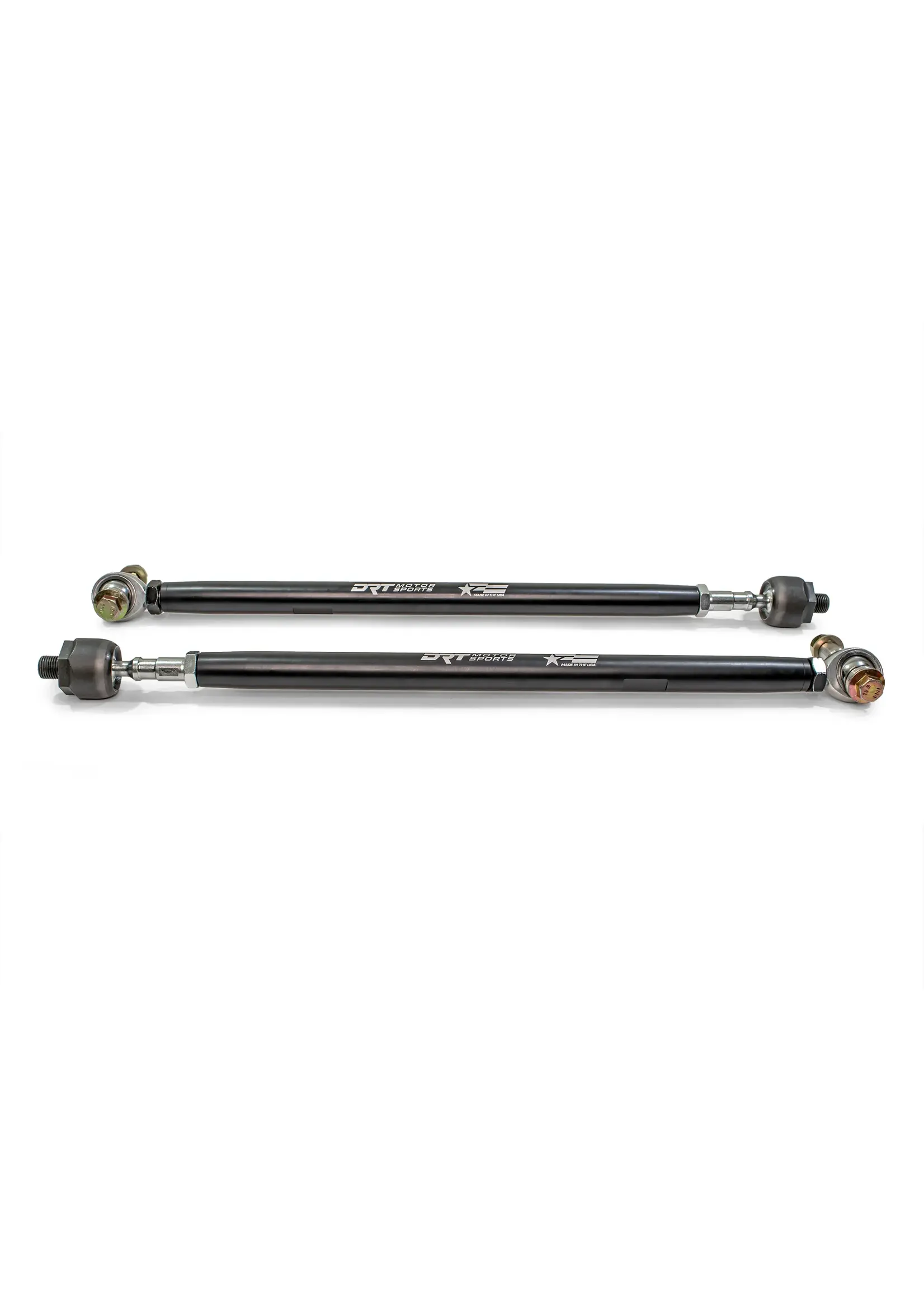

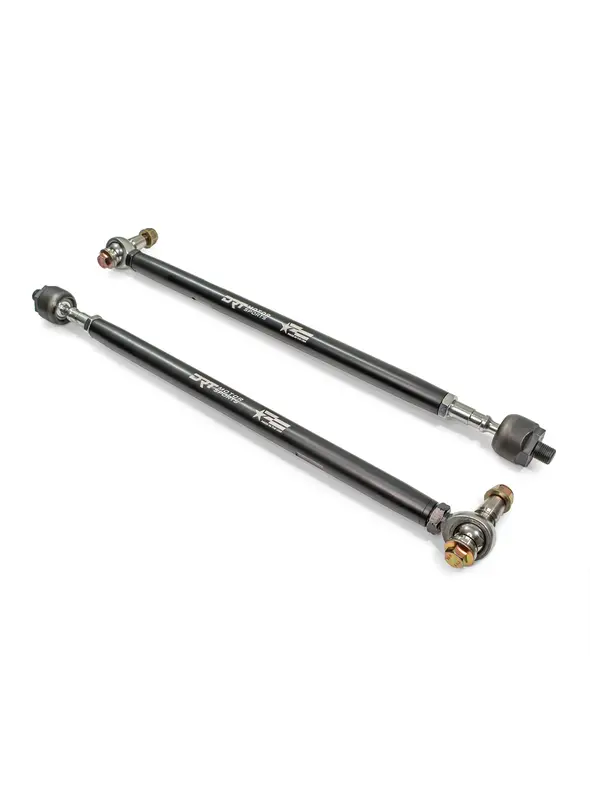

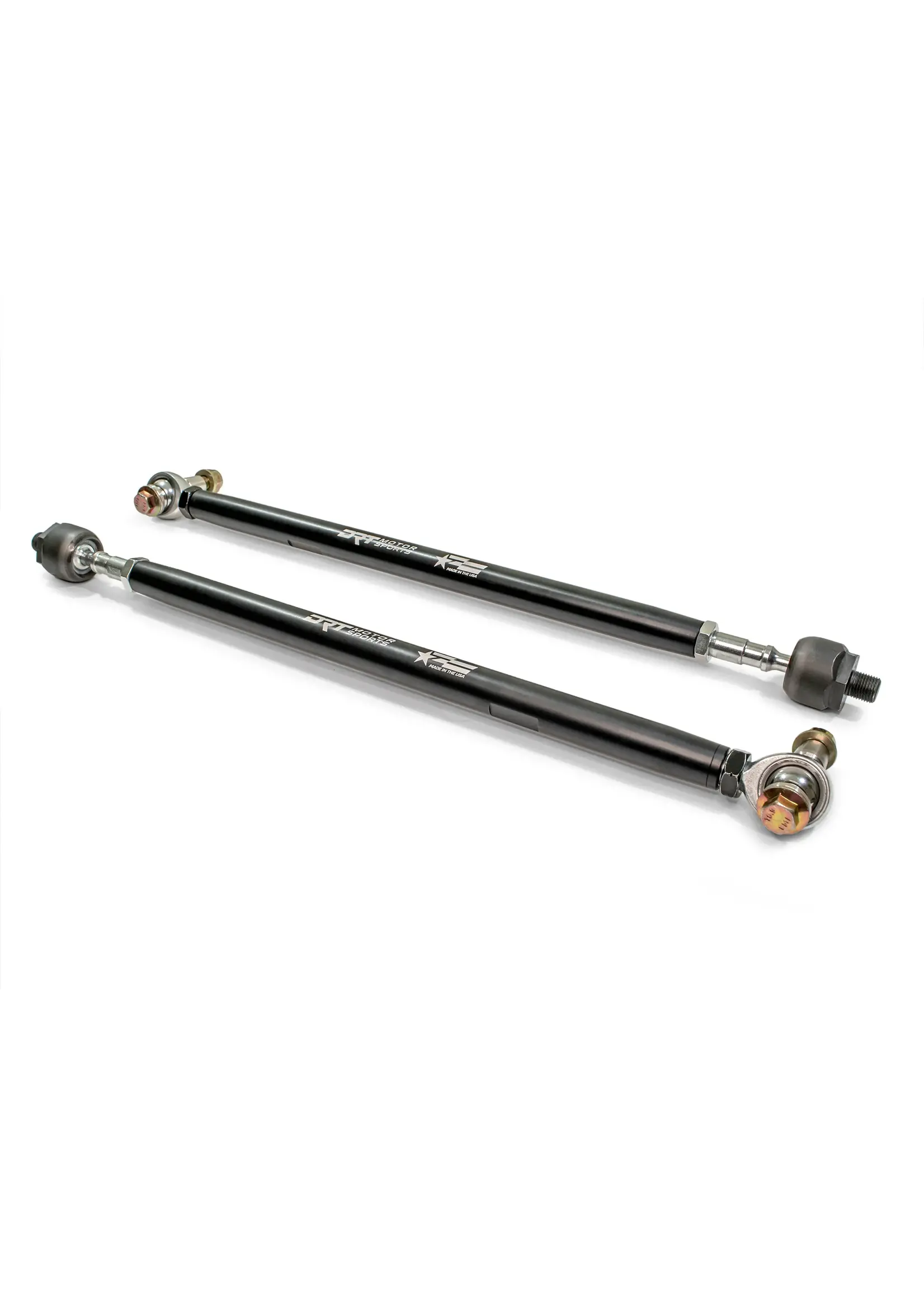

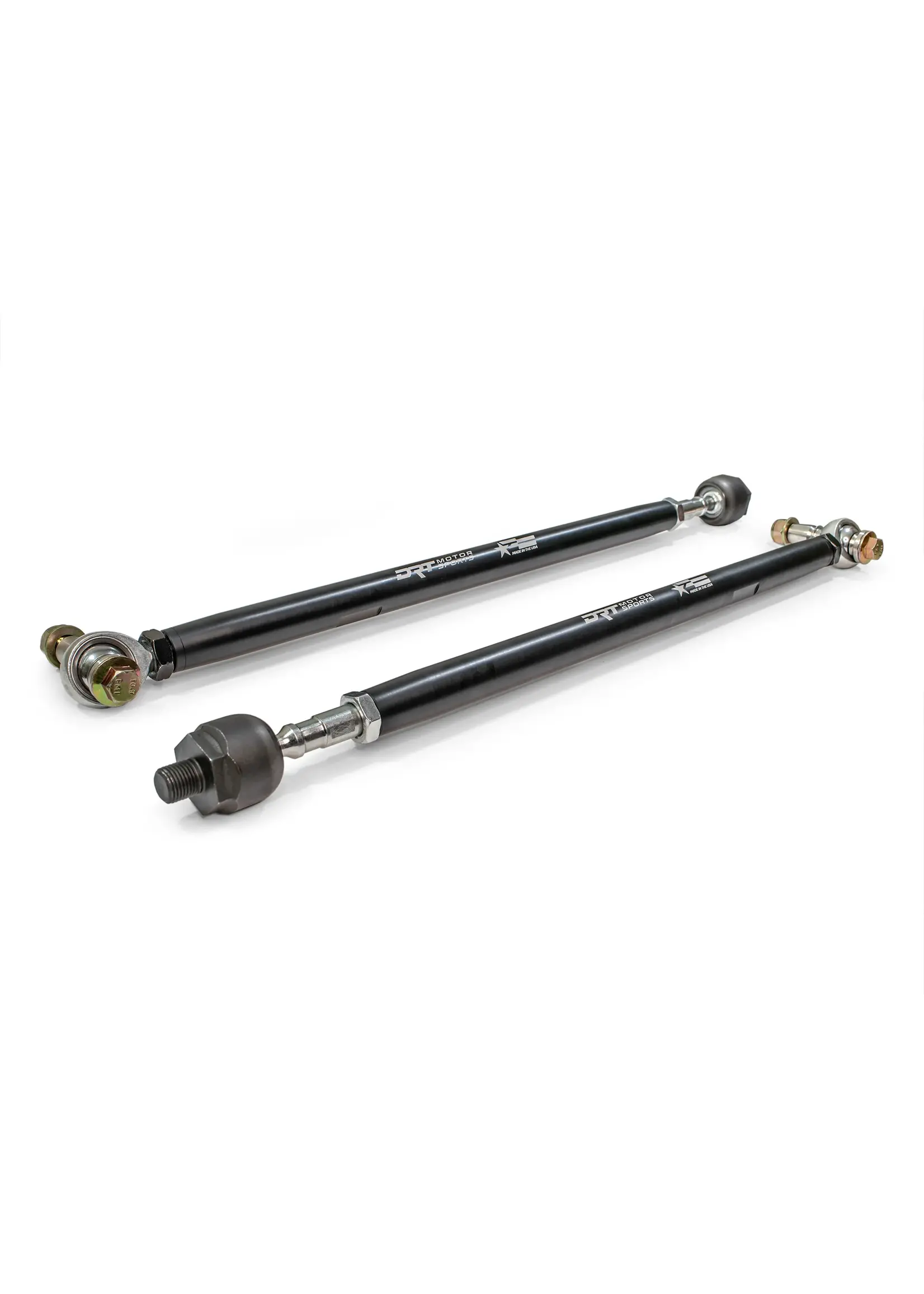

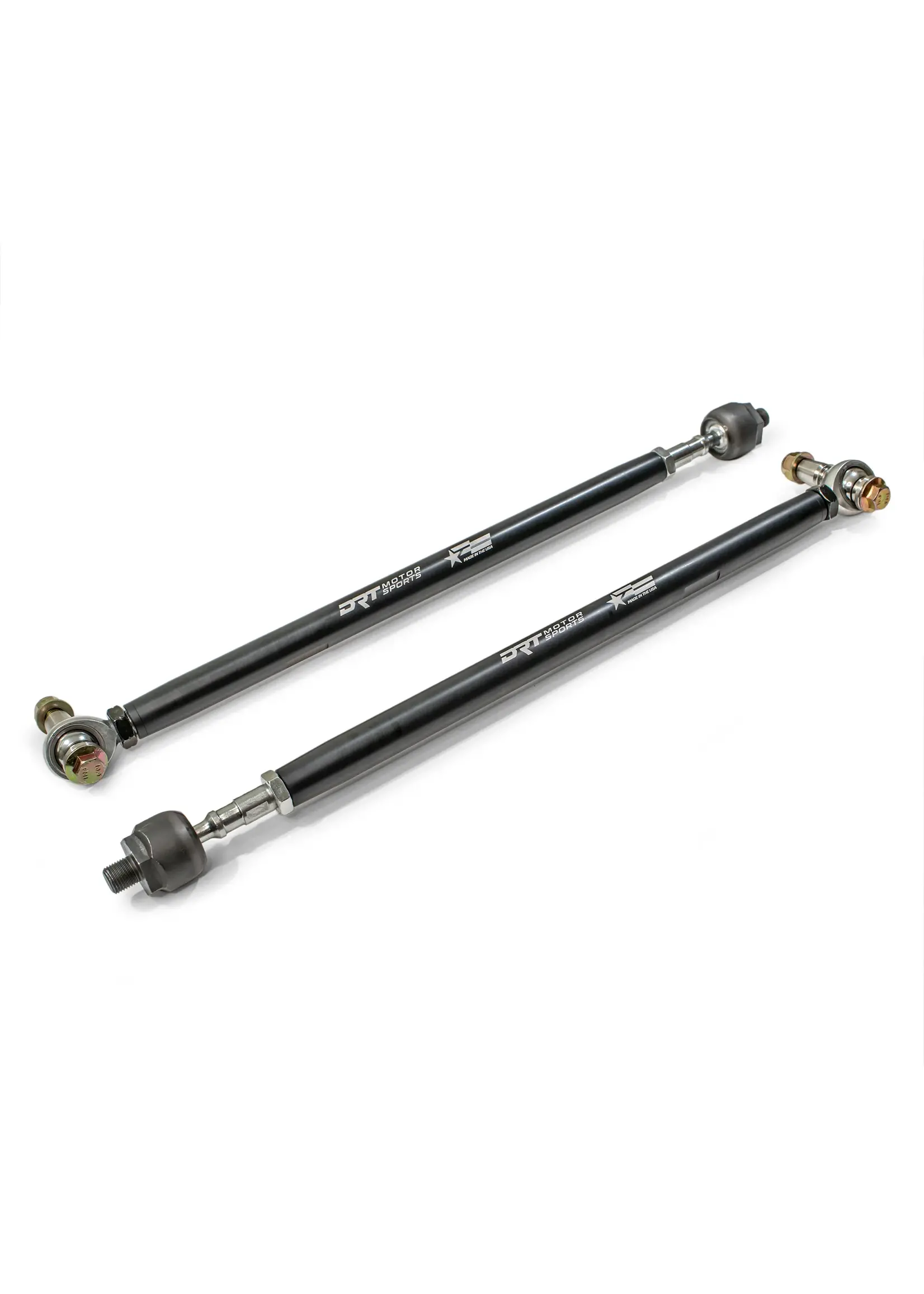

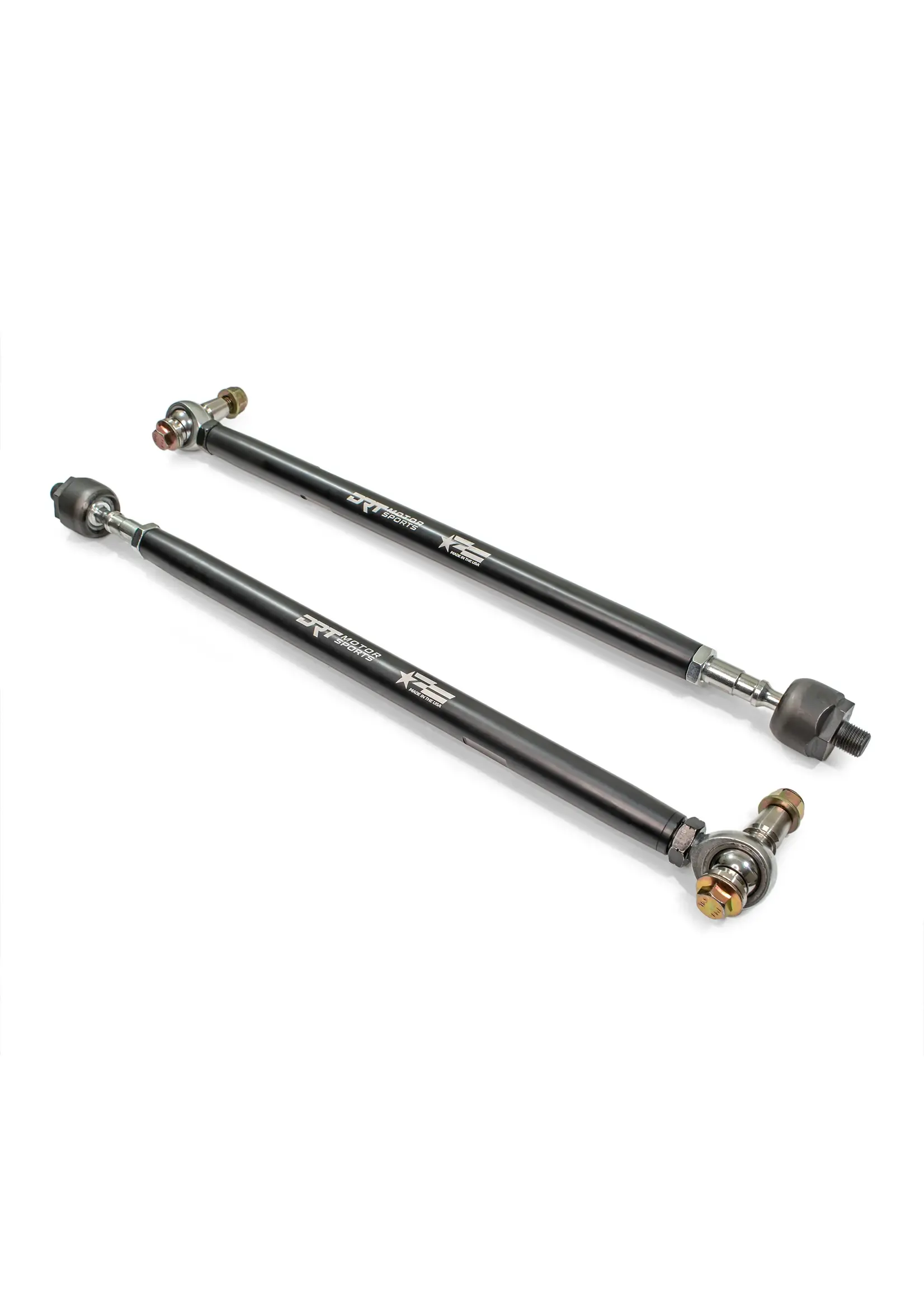

DRT Motorsports UHD (AL7075) Tie Rod Kit, Polaris PRO XP Platform 64"

DRT Motorsports UHD (AL-7075) Tie Rod Kit for the 2020+ Polaris PRO XP Platform (64") is designed to strengthen and add reliability to this potent powerplant.

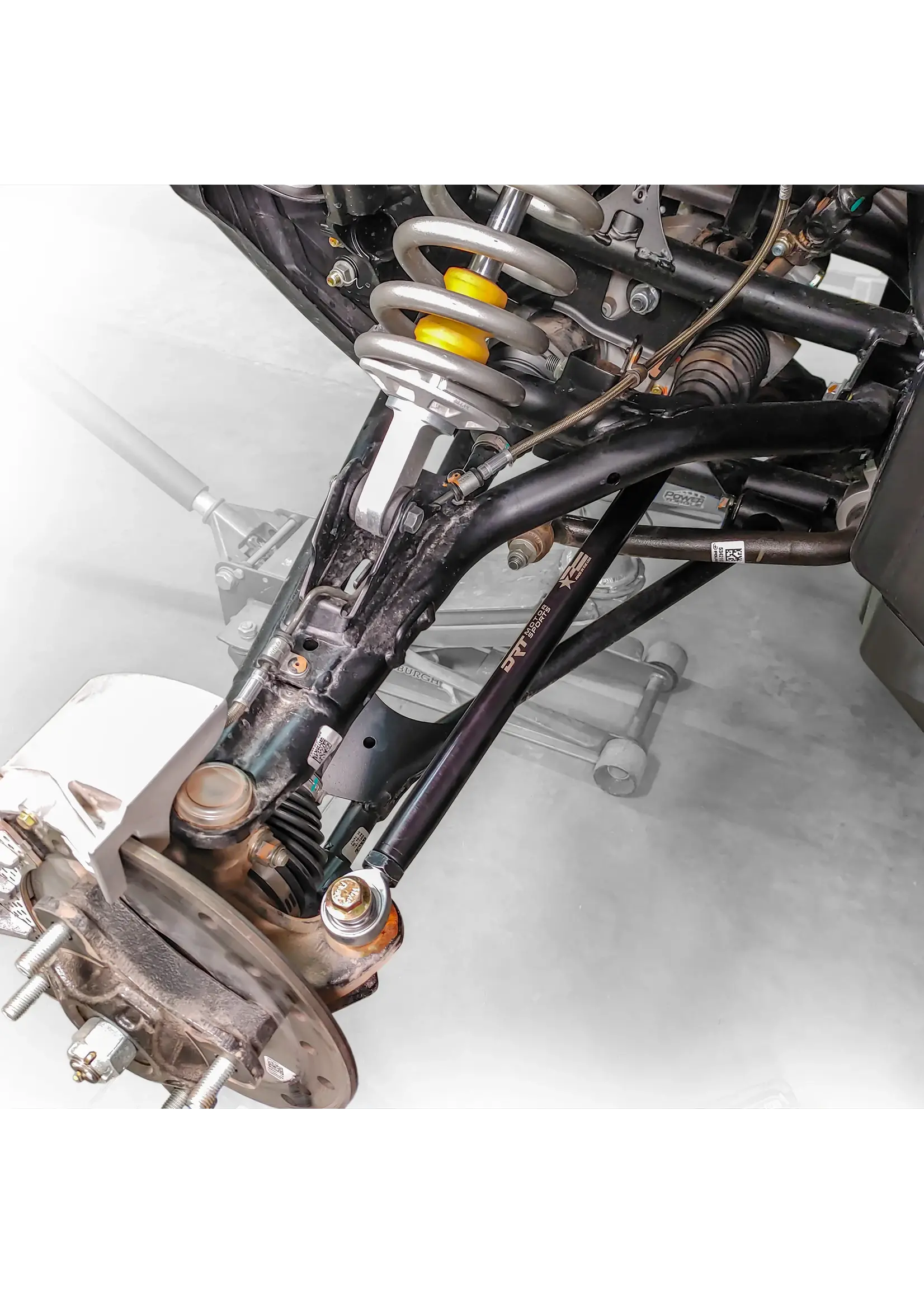

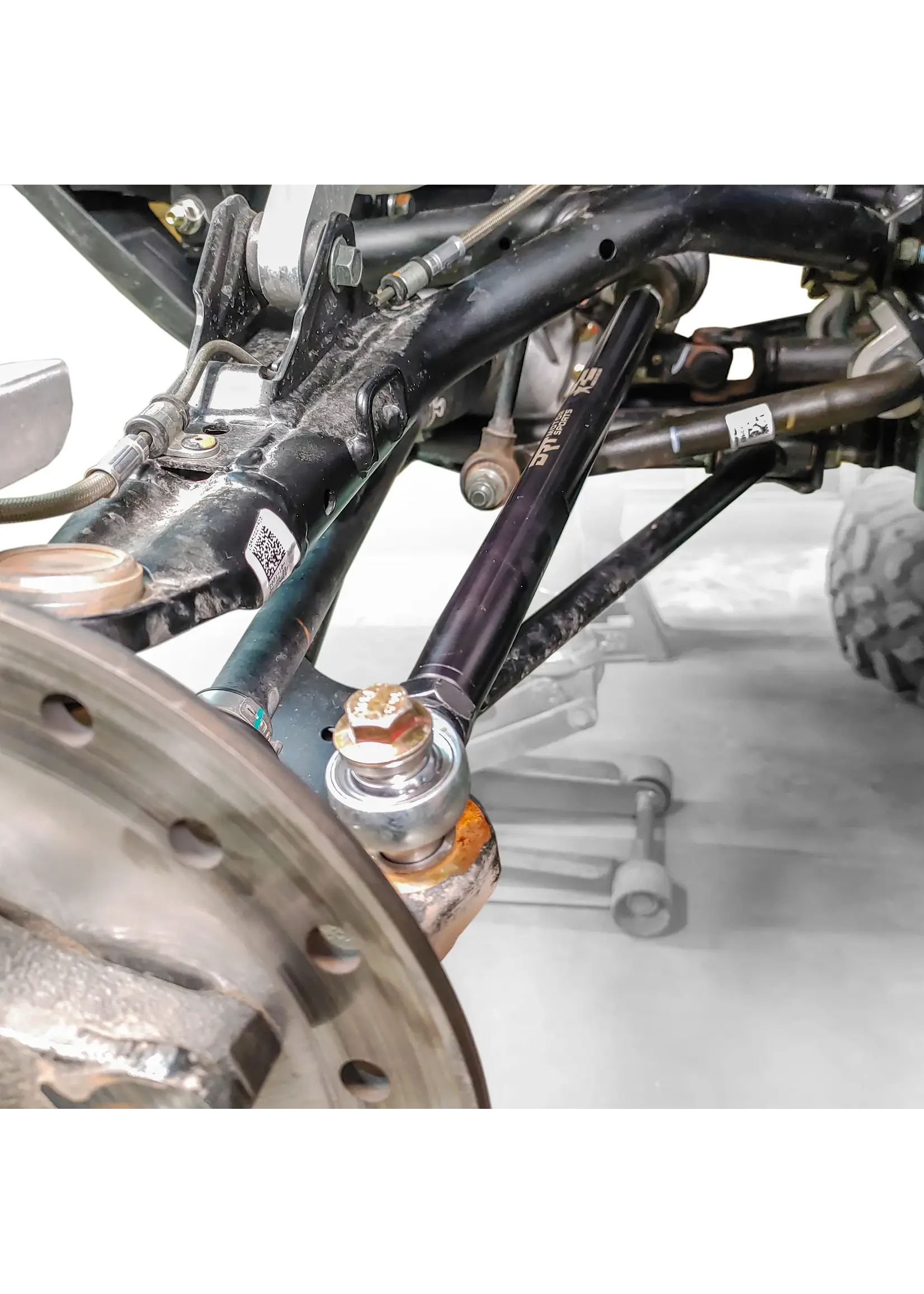

Made of 7 Series (UHD – Ultra Heavy Duty) 7075 billet bar stock, the DRT Pro XP tie rods are much stronger than standard 6061, lighter in weight, and able to be machined to a smaller diameter without sacrificing strength in order to clear all components through the entire range of motion. Even at full droop or compression, this tie rod set will clear all suspension and steering components at any point in the steering range so you can ride with confidence.

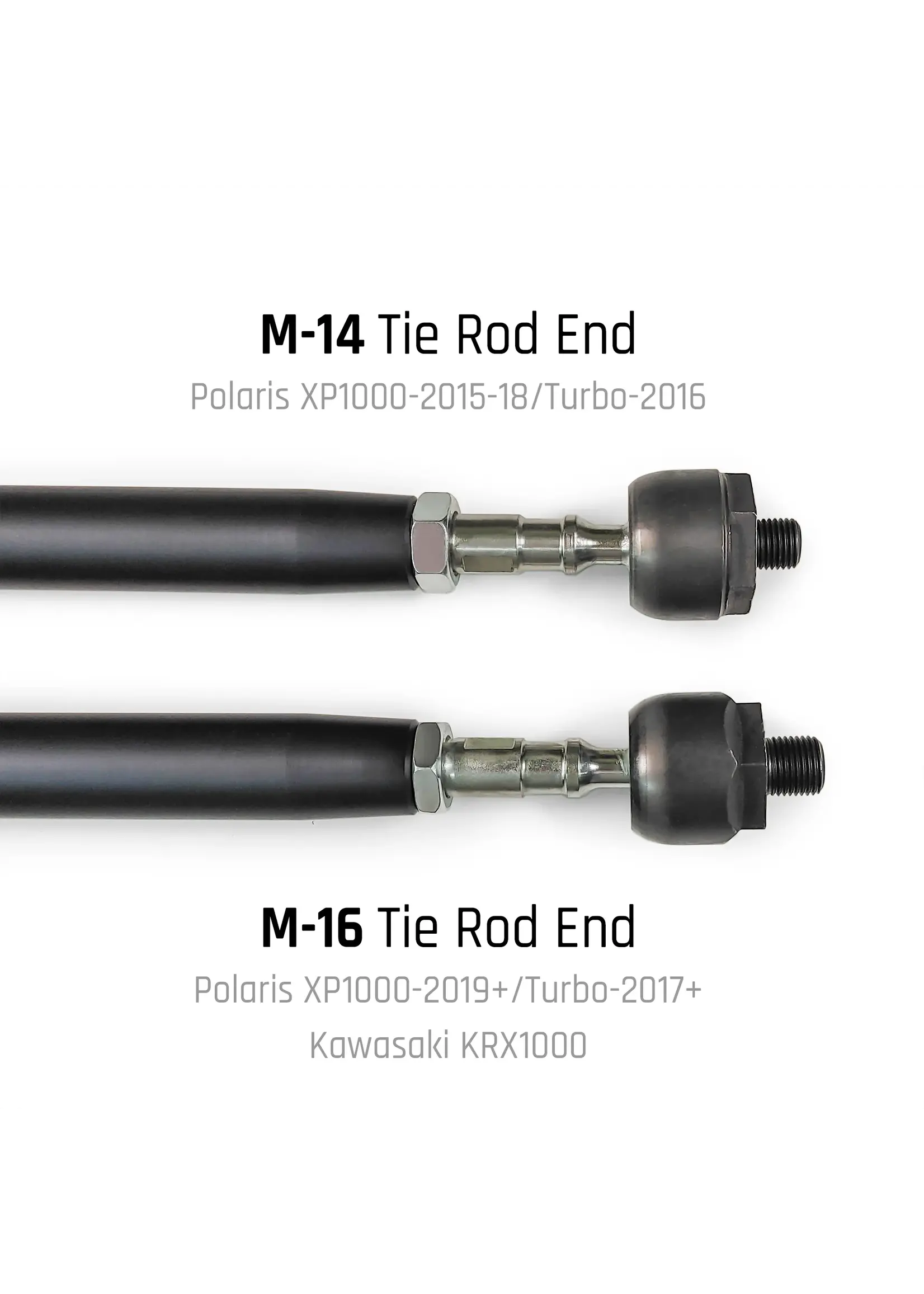

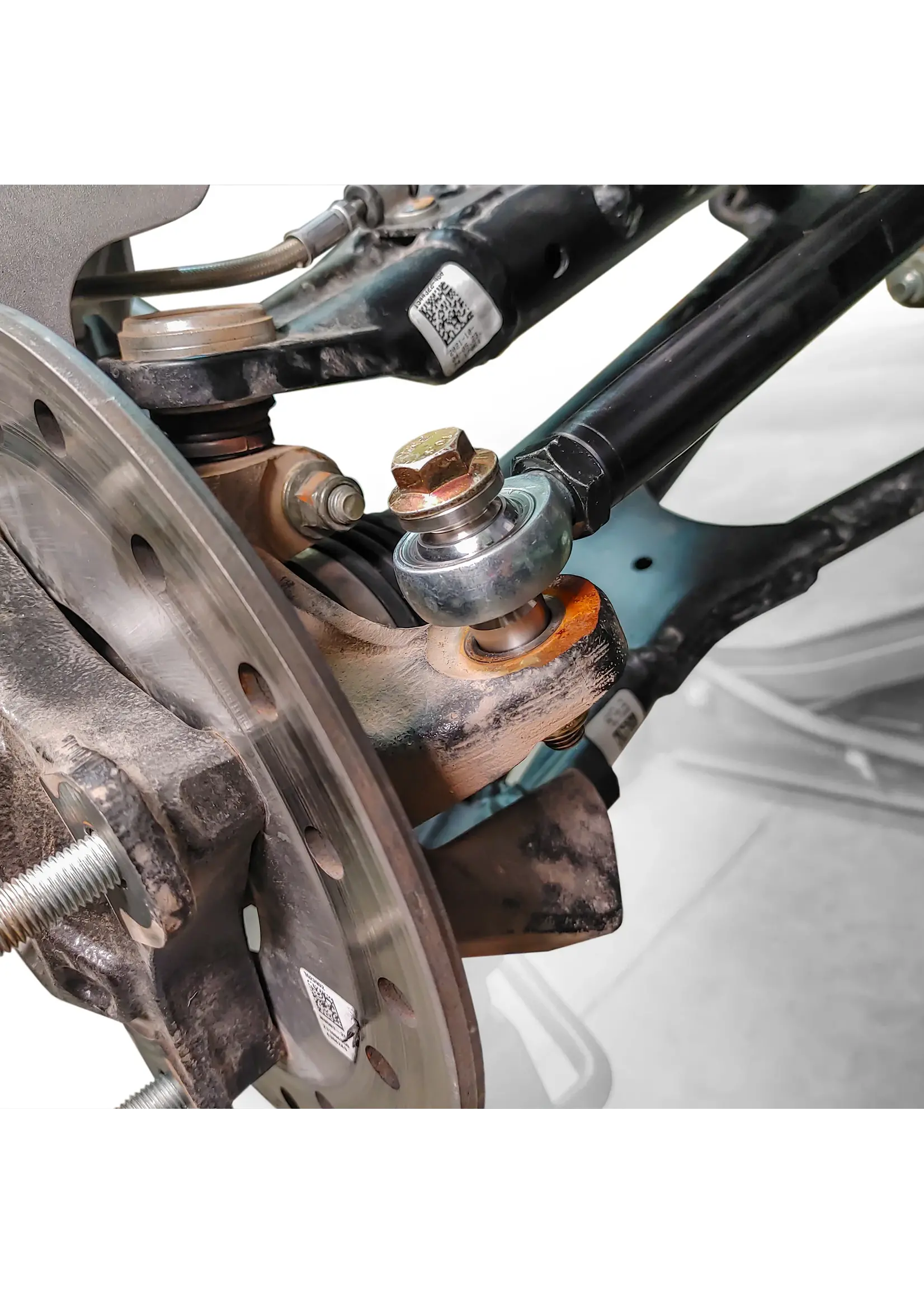

They work in conjunction with the OEM steering rack part number 1824946 and replace the OEM Rod Ends part numbers 7061257 and 7061258. We use 3-piece PTFE lined 5/8" Chromoly rod ends and our proprietary inner ball joint to provide sealing of the OEM bellow and protect the steering rack from the intrusion of water, dirt, and sand. DRT spec stainless steel misalignment spacers and class 10.9 hardware is used to provide the required clamping force to keep you on the trail.

The DRT Tie Rods are finished in Military Grade anodized black and marked with the DRT Motorsports; proudly made in the USA.

Note: Verify jam nuts are tight and installed with tread locker. The use of paint check to visually verify movement is recommended. Jam nuts should be inspected before each ride to make sure everything is tight and secure. These radius rods are Left/Right adjustable.

•
• Designed for Polaris RZR Pro XP/4 (64") application
• Machined from aerospace grade 7 series 7075-T6 aluminum
• Military Specification Anodized finish
• Laser engraved branding
• 3 pieces PTFE lined Left/Right hand 5/8" Chromoly rod ends
• Machined wrench notch areas for adjustability
• 303 Stainless Steel rod end spacers
• Made in the USA
